B64D Features

Features are numbered to match the numbers on the chassis pictures below. Tap on bold headings to reveal details.

• 1. Shock towers

  Stiff and lightweight 4mm thick carbon-fiber shock towers

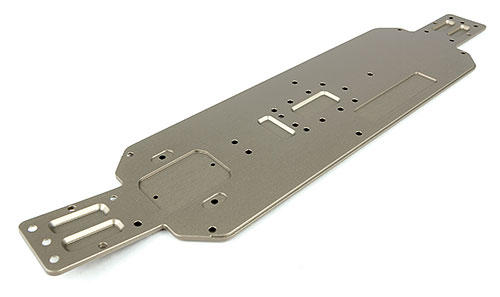

• 2. Chassis

  7075 hard-anodized narrow aluminum chassis with lightweight plastic side guards


• 3. Center gear diff

  Center gear differential maximizes drive out of the corner


• 4. Floating motor mount

  Aluminum floating motor mount allows consistent torsional chassis flex



• 5. Floating servo mount

  Aluminum + carbon fiber floating servo mount offers a tweak-free assembly


• 6. Suspension arms

  Robust suspension arms with multiple shock mounting positions


• 7. Aluminum drive hexes

  12mm aluminum drive hexes, both front and rear


• 8. Aluminum caster blocks

  Precision-made aluminum caster blocks for added durability


• More Features
  • Easy access to to differentials allow quick tuning and maintenance
  • Front and rear anti-roll bars provide flat cornering
  • Fully adjustable aluminum front and rear suspension arm mounts
  • B6 generation ball cups and turnbuckles for precise adjustments and durability
  • All metric hardware
  • V2 12mm big bore threaded aluminum shocks with TiN shock shafts
  • Option to mount rear shocks on either the front or rear of the rear suspension arms
  • Factory Team upgraded ball bearings
  • Team Associated clear body and screw-mounted wing by JConcepts™
  • Factory Team aluminum shock bushings provide a stable shock mount base
